Canyon Report

A frontend code coverage visualization component (Library) based on Monaco Editor. Provides line coverage count, changed line markers, and syntax block (statements/functions/branches) uncovered highlighting capabilities, suitable for quickly rendering single-file level coverage details in web pages.

Interface Introduction

Interface Graphics Display

Interface Color Coding

Color	pct (Coverage Percentage)	Description
Green	pct >= 80	Statement coverage greater than or equal to 80
Yellow	pct >= 50 && pct < 80	Statement coverage greater than or equal to 50 and less than 80
Red	pct < 50	Statement coverage less than 50

Interface Area Functions

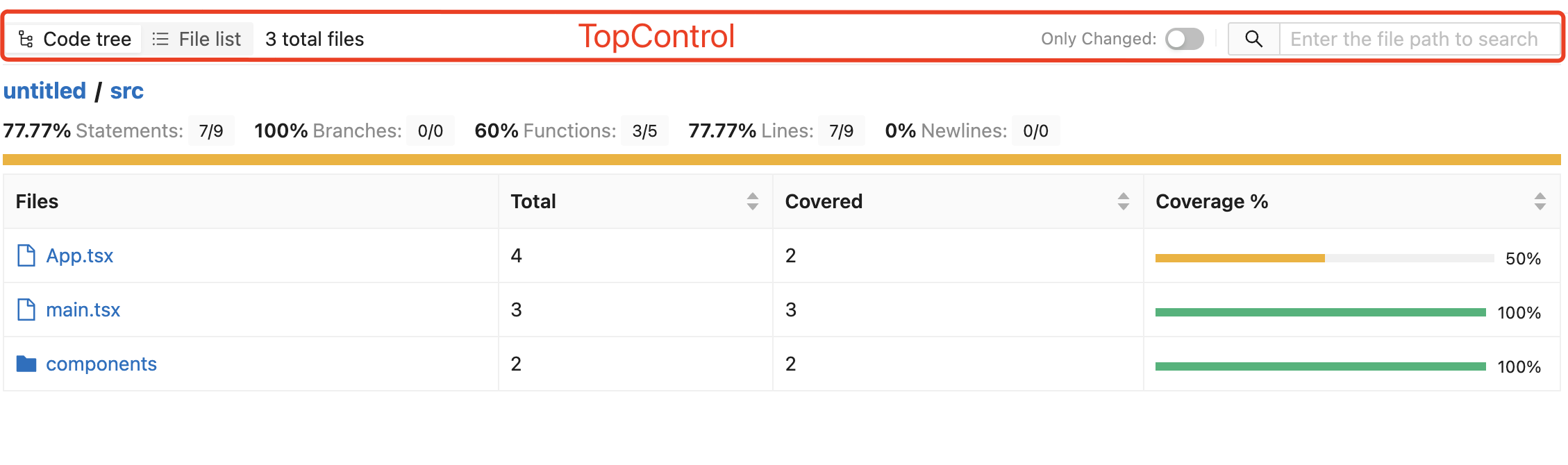

Top Control Bar (TopControl )


  View mode toggle: Switch between "code tree" and "file list" views
  Changed file filter: "Show changed only" toggle, filter to show files with code changes
  File search: Enter file path keywords to search and filter
  File statistics: Display total number of files under current filter conditions

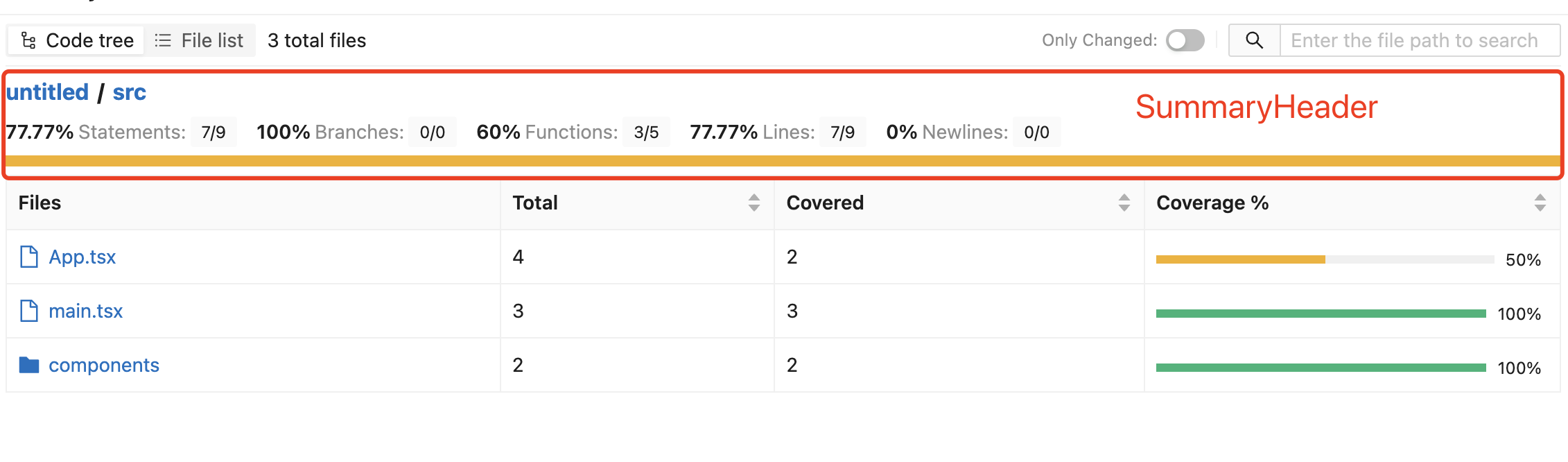

Summary Header Area (SummaryHeader )


  Project path navigation: Display current project path hierarchy

  Coverage statistics overview: Display key coverage metrics
    Statement Coverage (Statements)
    Branch Coverage (Branches)
    Function Coverage (Functions)
    Line Coverage (Lines)
    New Line Coverage (New Lines)
    Changed Function Coverage (Changed Functions)
    Changed Branch Coverage (Changed Branches)
    Changed Statement Coverage (Changed Statements)

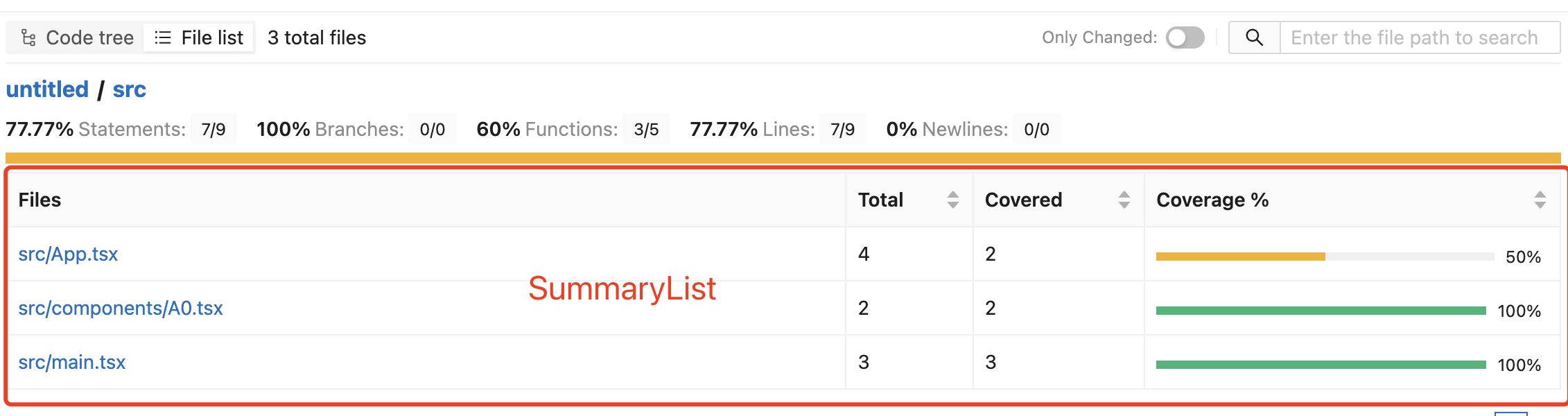

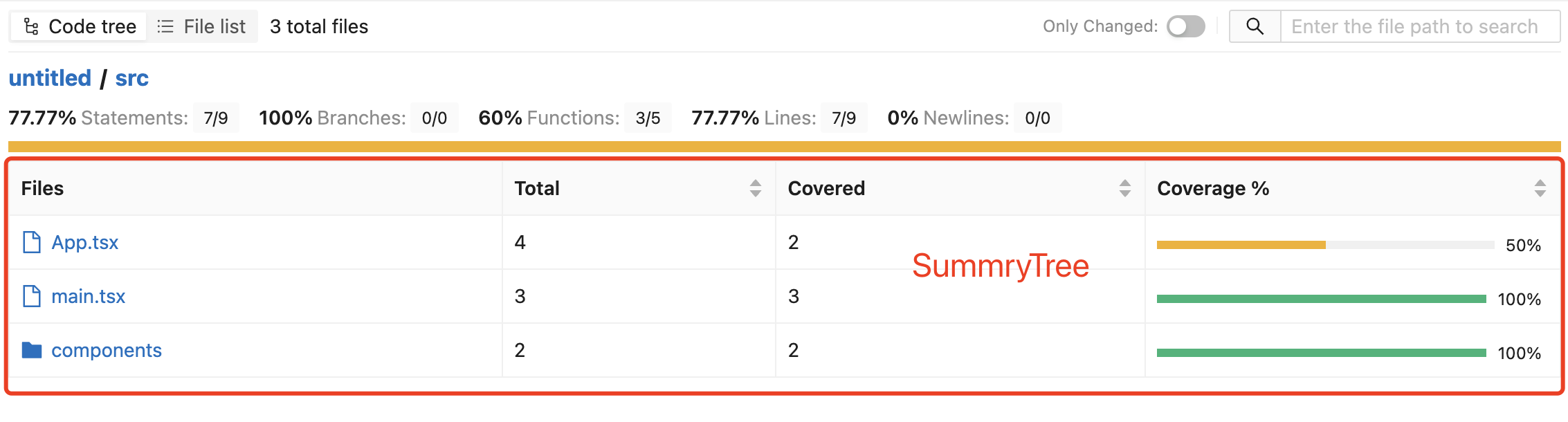

Content Area (SummaryTree /SummaryList )


  Table display: Display file list in table format
  Column information: File name, total count, covered count, coverage percentage
  Progress bar: Visually display coverage level
  File type icons: Distinguish files and folders

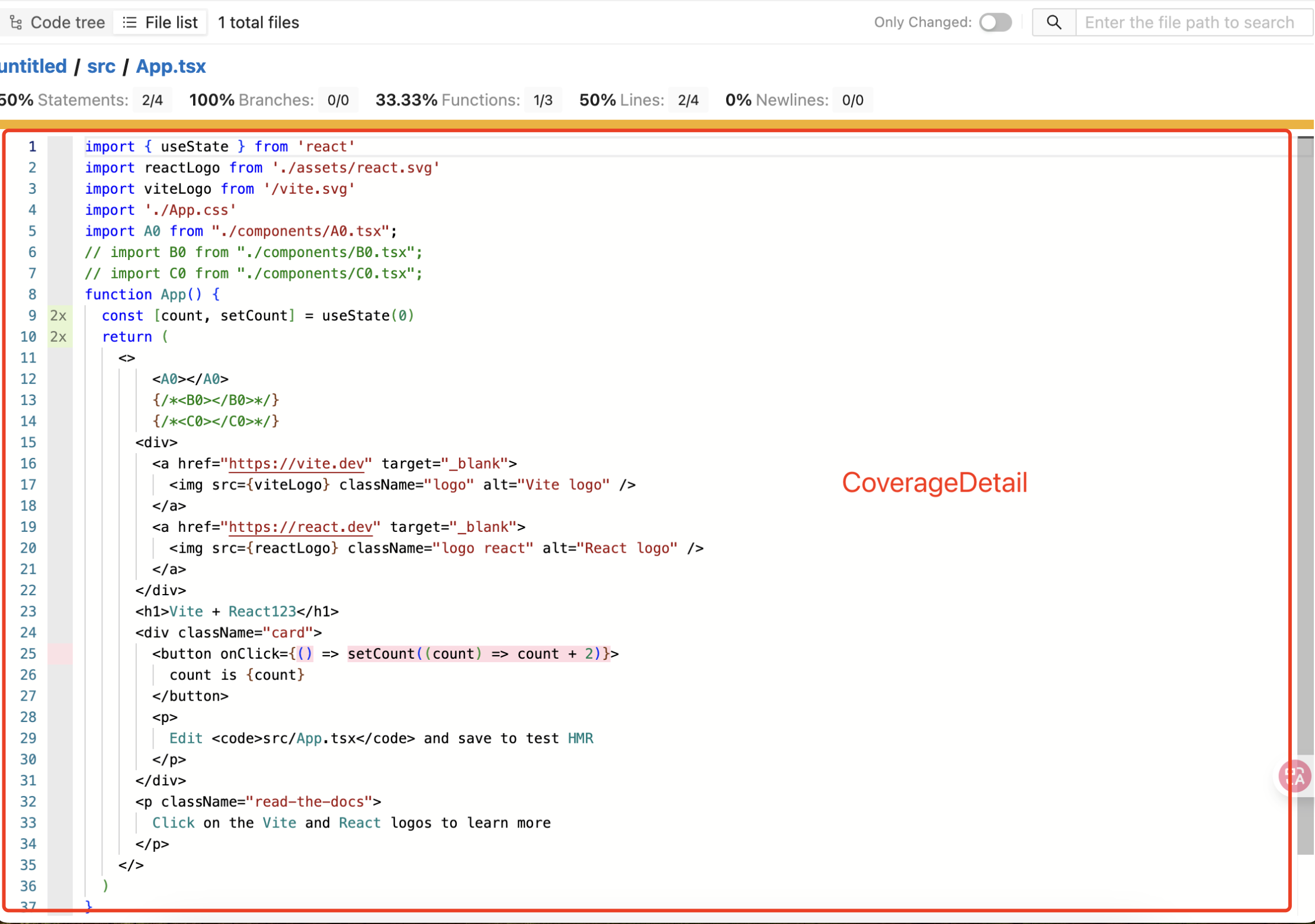

SPA Component (CoverageDetail )


  Green: Display execution count on the line number side.
  Dark green: Changed markers displayed on the line number side, highlight changed lines by passing diff.
  Red: Uncovered statements and functions
  Yellow: Incompletely covered branch code

Installation


npm install canyon-report

Basic Usage


import Report from "canyon-report";

function App() {
  const dataSource = {
    // Istanbul coverage data
  };

  const handleSelect = async (filePath) => {
    // Return detailed information of selected file
    return {
      fileContent: "File content",
      fileCoverage: {}, // Istanbul FileCoverageData
      fileCodeChange: [], // Array of changed line numbers
    };
  };

  return (
    <Report
      theme="light"
      language="cn"
      name="Project Name"
      dataSource={dataSource}
      value="Currently selected file path"
      onSelect={handleSelect}
      defaultOnlyShowChanged={false}
    />
  );
}

API Parameters

Parameter	Type	Description
theme	`ThemeEnum`	Theme mode
language	`LanguageEnum`	Interface language
name	`string`	Project name
dataSource	`{ [key: string]: CoverageSummaryData & { path: string,change:boolean } }`	Coverage data source
value	`string`	Currently selected file
onSelect	`(val: string) => Promise<{fileCoverage: FileCoverageData;fileContent: string; fileCodeChange: number[]; }>`
defaultOnlyShowChanged	`boolean`	Whether to show only changed files by default

数据结构

CoverageSummaryData


interface CoverageSummaryData {
  lines: Totals;
  statements: Totals;
  branches: Totals;
  functions: Totals;
}

Totals


interface Totals {
  total: number;
  covered: number;
  skipped: number;
  pct: number;
}

FileCoverageData


interface FileCoverageData {
  path: string;
  statementMap: { [key: string]: Range };
  fnMap: { [key: string]: FunctionMapping };
  branchMap: { [key: string]: BranchMapping };
  s: { [key: string]: number };
  f: { [key: string]: number };
  b: { [key: string]: number[] };
}

BranchMapping


export interface BranchMapping {
  loc: Range;
  type: string;
  locations: Range[];
  line: number;
}

FunctionMapping


export interface FunctionMapping {
  name: string;
  decl: Range;
  loc: Range;
  line: number;
}

Range


interface Range {
  start: Location;
  end: Location;
}

Location


interface Location {
  line: number;
  column: number;
}

ThemeEnum


enum ThemeEnum {
  Light = "light",
  Dark = "dark",
}

LanguageEnum


enum LanguageEnum {
  CN = "cn",
  EN = "en",
  JA = "ja",
}

数据示例

dataSource


{
  "src/App.tsx": {
    "branches": { "covered": 0, "pct": 100, "skipped": 0, "total": 0 },
    "change": false,
    "functions": {
      "covered": 1,
      "pct": 33.33333333333333,
      "skipped": 0,
      "total": 3
    },
    "lines": { "covered": 2, "pct": 50, "skipped": 0, "total": 4 },
    "path": "src/App.tsx",
    "statements": { "covered": 2, "pct": 50, "skipped": 0, "total": 4 }
  },
  "src/components/A0.tsx": {
    "branches": { "covered": 0, "pct": 100, "skipped": 0, "total": 0 },
    "change": false,
    "functions": { "covered": 1, "pct": 100, "skipped": 0, "total": 1 },
    "lines": { "covered": 2, "pct": 100, "skipped": 0, "total": 2 },
    "path": "src/components/A0.tsx",
    "statements": { "covered": 2, "pct": 100, "skipped": 0, "total": 2 }
  },
  "src/components/B0.tsx": {
    "branches": { "covered": 0, "pct": 100, "skipped": 0, "total": 0 },
    "change": false,
    "functions": { "covered": 3, "pct": 100, "skipped": 0, "total": 3 },
    "lines": { "covered": 6, "pct": 100, "skipped": 0, "total": 6 },
    "path": "src/components/B0.tsx",
    "statements": { "covered": 6, "pct": 100, "skipped": 0, "total": 6 }
  },
  "src/components/C0.tsx": {
    "branches": { "covered": 1, "pct": 100, "skipped": 0, "total": 0 },
    "change": false,
    "functions": { "covered": 2, "pct": 100, "skipped": 0, "total": 2 },
    "lines": {
      "covered": 5,
      "pct": 83.33333333333334,
      "skipped": 0,
      "total": 6
    },
    "path": "src/components/C0.tsx",
    "statements": {
      "covered": 5,
      "pct": 83.33333333333334,
      "skipped": 0,
      "total": 6
    }
  },
  "src/main.tsx": {
    "branches": { "covered": 0, "pct": 100, "skipped": 0, "total": 0 },
    "change": false,
    "functions": { "covered": 1, "pct": 100, "skipped": 0, "total": 1 },
    "lines": { "covered": 3, "pct": 100, "skipped": 0, "total": 3 },
    "path": "src/main.tsx",
    "statements": { "covered": 3, "pct": 100, "skipped": 0, "total": 3 }
  }
}

handleSelect 返回内容



{
    fileContent:"import { useState } from 'react'\nimport reactLogo from './assets/react.svg'\nimport viteLogo from '/vite.svg'\nimport './App.css'\nimport A0 from \"./components/A0.tsx\";\nimport B0 from \"./components/B0.tsx\";\nimport C0 from \"./components/C0.tsx\";\nfunction App() {\n  const [count, setCount] = useState(0)\n  return (\n    <>\n        <A0></A0>\n        <B0></B0>\n        <C0></C0>\n      <div>\n        <a href=\"https://vite.dev\" target=\"_blank\">\n          <img src={viteLogo} className=\"logo\" alt=\"Vite logo\" />\n        </a>\n        <a href=\"https://react.dev\" target=\"_blank\">\n          <img src={reactLogo} className=\"logo react\" alt=\"React logo\" />\n        </a>\n      </div>\n      <h1>Vite + React123</h1>\n      <div className=\"card\">\n        <button onClick={() => setCount((count) => count + 2)}>\n          count is {count}\n        </button>\n        <p>\n          Edit <code>src/App.tsx</code> and save to test HMR\n        </p>\n      </div>\n      <p className=\"read-the-docs\">\n        Click on the Vite and React logos to learn more\n      </p>\n    </>\n  )\n}\n\nexport default App\n"
    fileCodeChange: [26,27,28],
    fileCoverage:{
        "b": {},
        "branchMap": {},
        "f": { "0": 151, "1": 0, "2": 0 },
        "fnMap": {
            "0": {
            "decl": {
                "end": { "column": 12, "line": 8 },
                "start": { "column": 9, "line": 8 }
            },
            "line": 8,
            "loc": {
                "end": { "column": 1, "line": 37 },
                "start": { "column": 15, "line": 8 }
            },
            "name": "App"
            },
            "1": {
            "decl": {
                "end": { "column": 26, "line": 25 },
                "start": { "column": 25, "line": 25 }
            },
            "line": 25,
            "loc": {
                "end": { "column": 61, "line": 25 },
                "start": { "column": 31, "line": 25 }
            },
            "name": "(anonymous_1)"
            },
            "2": {
            "decl": {
                "end": { "column": 41, "line": 25 },
                "start": { "column": 40, "line": 25 }
            },
            "line": 25,
            "loc": {
                "end": { "column": 60, "line": 25 },
                "start": { "column": 51, "line": 25 }
            },
            "name": "(anonymous_2)"
            }
        },
        "path": "src/App.tsx",
        "s": { "0": 172, "1": 151, "2": 0, "3": 0 },
        "statementMap": {
            "0": {
            "end": { "column": 39, "line": 9 },
            "start": { "column": 28, "line": 9 }
            },
            "1": {
            "end": { "column": 3, "line": 36 },
            "start": { "column": 2, "line": 10 }
            },
            "2": {
            "end": { "column": 61, "line": 25 },
            "start": { "column": 31, "line": 25 }
            },
            "3": {
            "end": { "column": 60, "line": 25 },
            "start": { "column": 51, "line": 25 }
            }
        }
        }
}
